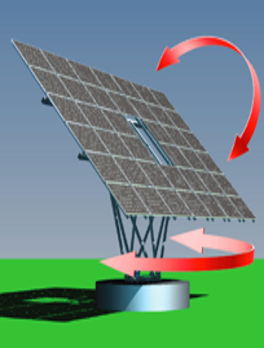

SOLAR-1 is an innovative and highly efficient automated two-axis photovoltaic solar follower.
A solar follower is a device that allows the photovoltaic panels to be aligned to the sun during the whole day, obtaining the maximum possible output from the on-board inverter.
TECH
SPEC
Type
Azimutal and Zenital solar follower
Position Control
Software defined optimized astronomicA algorithm based on a PLC
Azimuthal Drive
Gear Motor and Sprocket, Rotational angle: + 120° / -120°
Zenithal Drive
Electric Linear Actuator. Tilt angle: from 0° to 90°
Panel Height from ground
Min. 1100mm Max. 7800mm°
Monitoring
Local and remote
Maximum photovoltaic power
12/14 Kwp
Positioning self-consumption
< 100 Kwh/year
Maximum wind speed
140 Km/h, with optimized automatic positioning over 70 Km/h

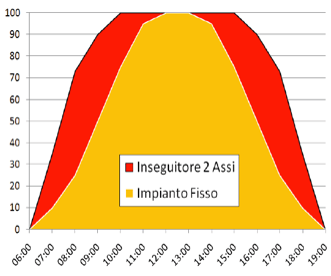

Increase productivity
+35%
